-20 XR-31 Lightweight Nylon Braided Race Hose | 1.125" ID - 1.437" OD | XRP 312000

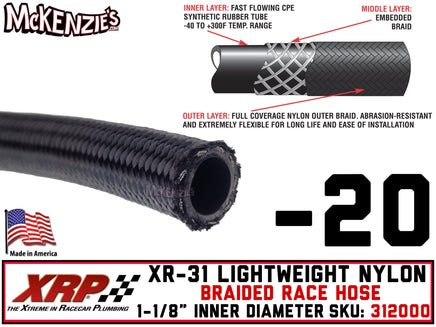

XRP -20 Lightweight Nylon Braided Race Hose. It’s versatile, flexible, easy to cut and assemble with a number of attractive characteristics including: excellent temperature resistance -40˚ to +300˚ F, high tube strength, tight bend radius capable for tight engine compartments. 3-ply construction consists of full coverage Nylon-bonded outer braid for abrasion-resistance, partial coverage embedded braid middle layer, and CPE synthetic rubber inner tube for great flow and high-temperature resistance. XR-31 offers a significant weight-savings over stainless steel braided hose. MADE IN USA!

SKU: 312000 > SOLD PER FOOT/CUT TO LENGTH

• 1.125" Inner Diameter
• 1.437" Outer Diameter
• 350 psi Max Operating Pressure
• 1400 psi Burst Pressure
• Weight: .32 lbs per foot
• 8.00" Minimum Bend Radius
• Applications Approved - Gasoline, Fuel, Lubricating Oils, Air, & Water
• Hose Flow Capacities & Flow Chart
• Installation Instructions

Dimensionally a direct Replacement/Substitute for:

• XRP Stainless Steel CPE Hose SKU: 300020
• Fragola 30000 Series Hose SKU:700020

FOR USE WITH THESE HOSE ENDS:
