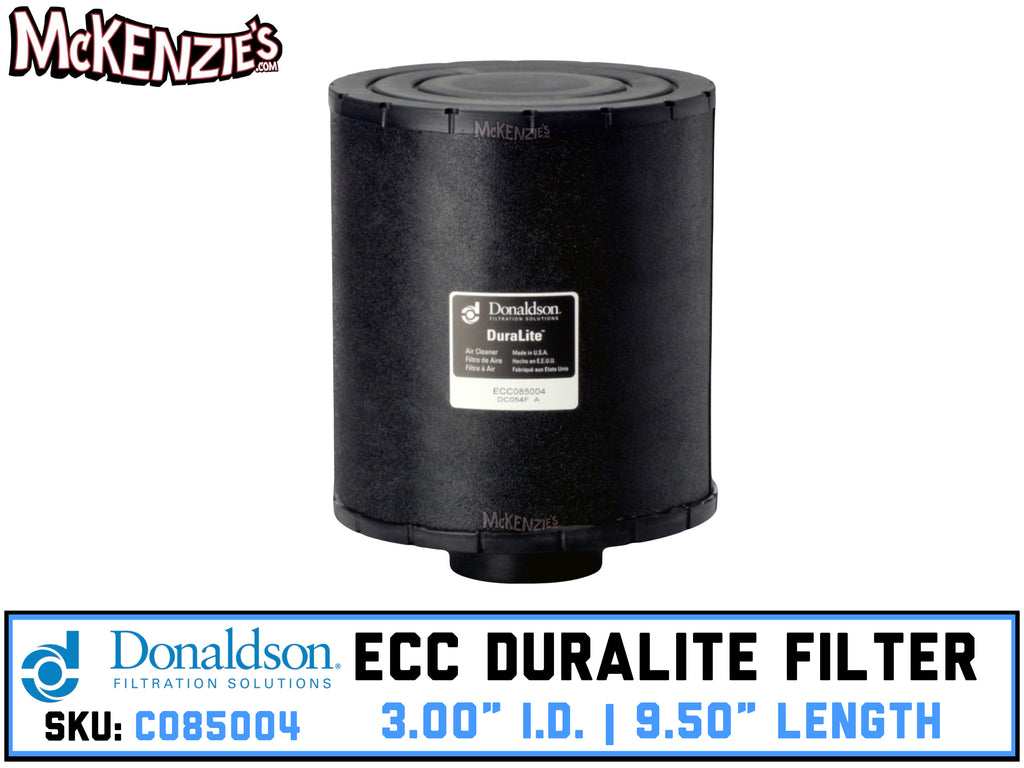

3.00" Clamp on Filter | Donaldson C085004
DONALDSON C085004 Duralite Air Filter | 3.00" Inner Diameter Clamp-on
-

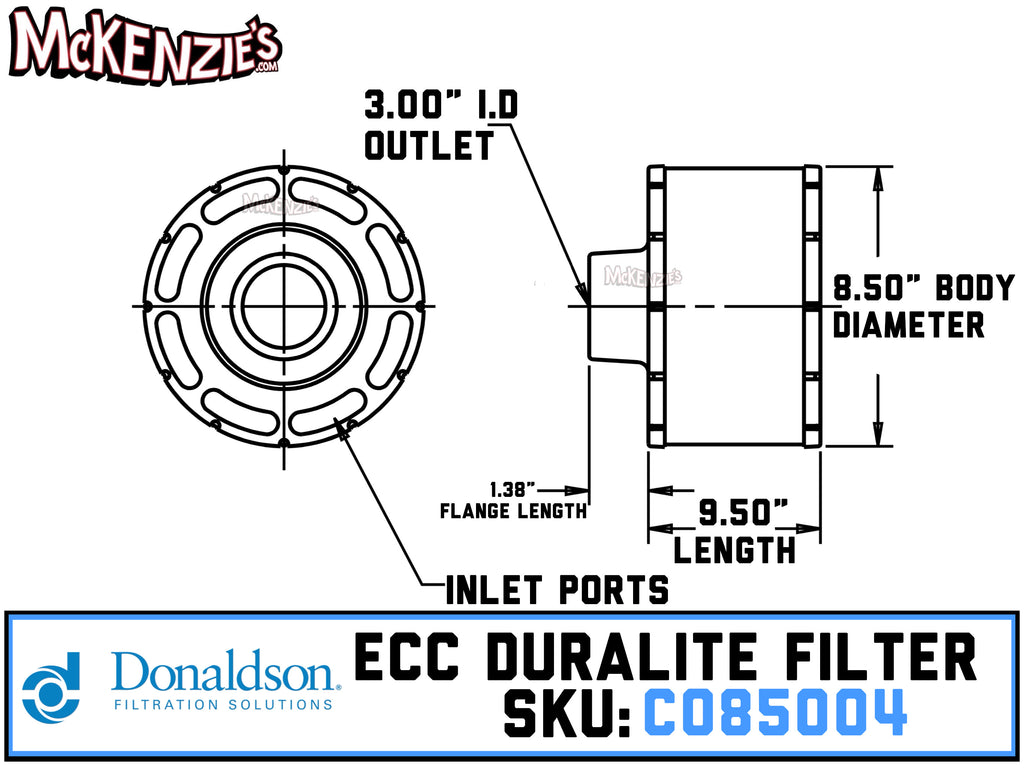

Outlet Diameter - 3.00 inch (76.2 mm)
-
Body Diameter Maximum - 8.50 inch (215.9 mm)
-
Body Length - 9.50 inch (241.3 mm)
-
Efficiency Test Std ISO 5011
-
Rated Flow LR - 170 cfm (4.8 m³/min)
-
Rated Flow MR - 205 cfm (5.8 m³/min)
-
Rated Flow HR - 244 cfm (6.9 m³/min)
-
Restriction LR - 4.02 inch H2O (102 mm H2O)
-
Restriction MR - 5.98 inch H2O (152 mm H2O)
-
Restriction HR - 7.99 inch H2O (203 mm H2O)
-
Family: ECC
-
Type: Primary
-
Style: Round
-
Brand: DuraLite™
-
Media Type: Cellulose
-
