Jamar Combo Wheel Bearing Kit | COMBBK-KIT
Jamar Combo Wheel Bearing Kit | COMBBK-KIT

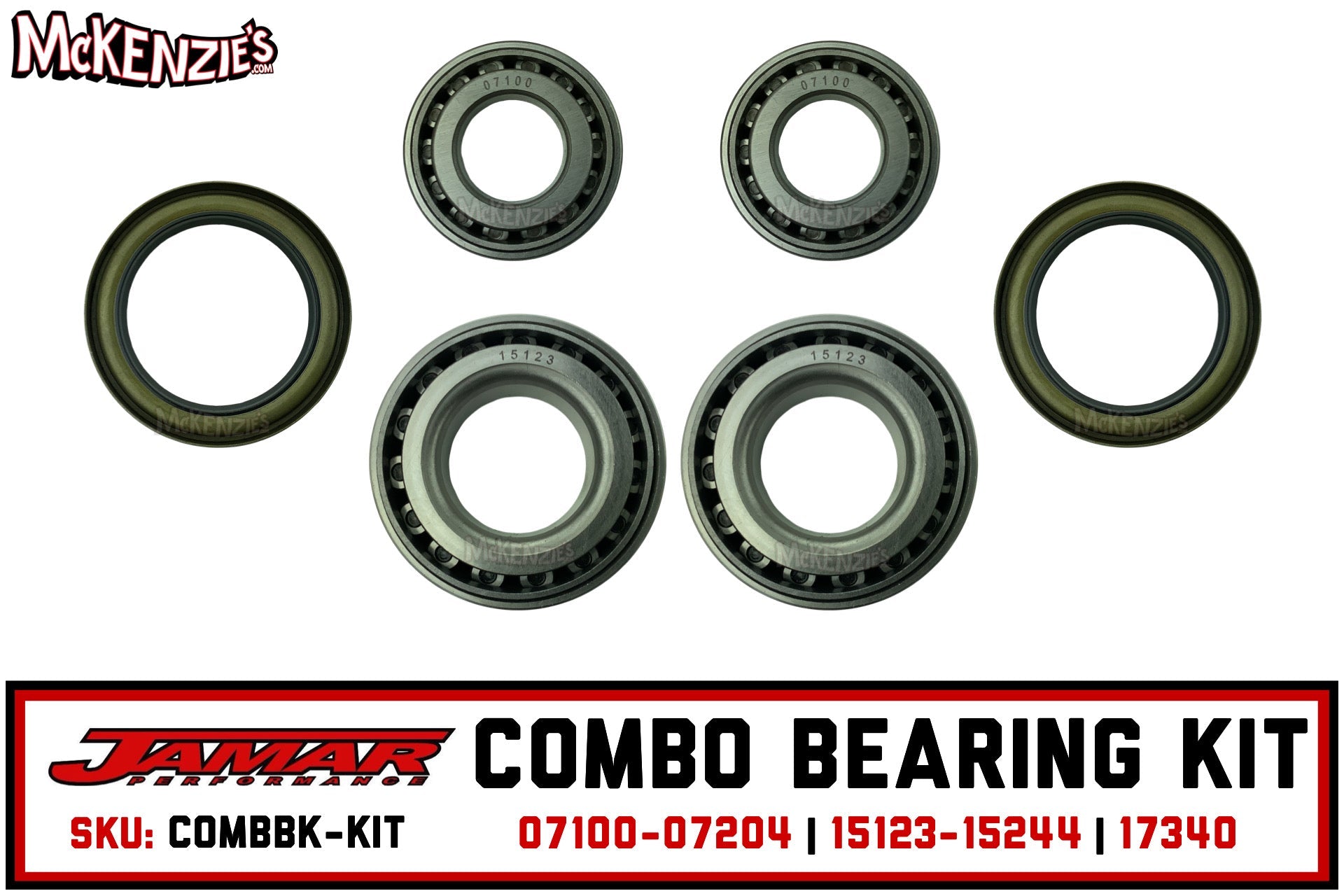

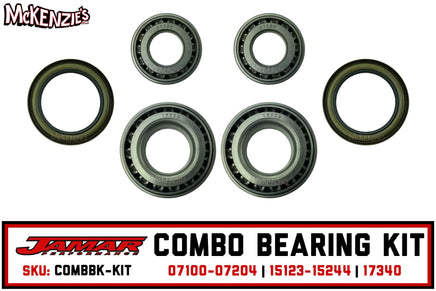

Combo wheel bearing kit is complete for servicing two hubs on one vehicle.
- Imported product by Jamar performance
- 2x Outer Bearing: 07100
- 2x Outer Race: 07204
- 2x Inner Bearing: 15123
- 2x Inner Race: 15244
- 2x Seal: 17340
- >COMBO SNOUT SPECIFICATIONS<
- Wheel Bearing Grease sold separately

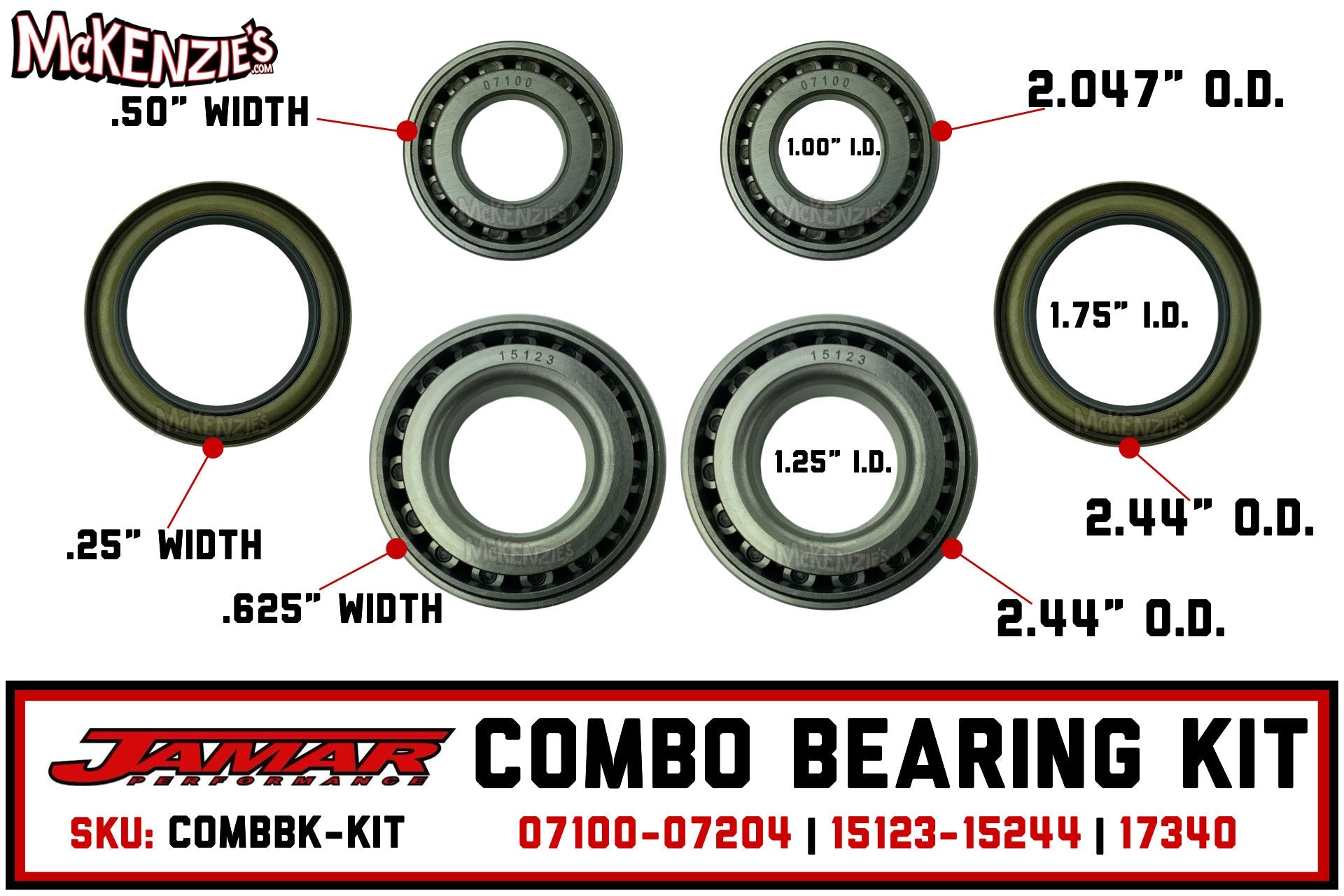

OUTER BEARING/RACE 07100/07204 SPECIFICATIONS:
- BORE: 1.00" | 25.4mm
- OUTSIDE DIAMETER: 2.047" | 51.99mm
- INNER RING WIDTH: .561" | 14.26mm
- OUTER RING WIDTH: .50" | 12.7mm
INNER BEARING/RACE LM29748/LM29711 SPECIFATIONS:
- BORE: 1.25" | 31.75mm
- OUTSIDE DIAMETER: 2.44" | 62mm
- INNER RING WIDTH: .75" | 19.05mm
- OUTER RING WIDTH: .625" | 15.875mm
SINGLE LIP GREASE SEAL 17340 SPECIFICATIONS:
- BORE: 1.750" | 47.625mm
- OUTSIDE DIAMETER: 2.44" | 65mm
- RING WIDTH: .25" | 7.95mm
- SEAL TYPE: RADIAL SHAFT SEAL
- LIP MATERIAL: NITRILE RUBBER
- OPERATING TEMPURATURE RANGE: -40 to 210 °F
- PRESSURE TOLERANCE: 3psi
