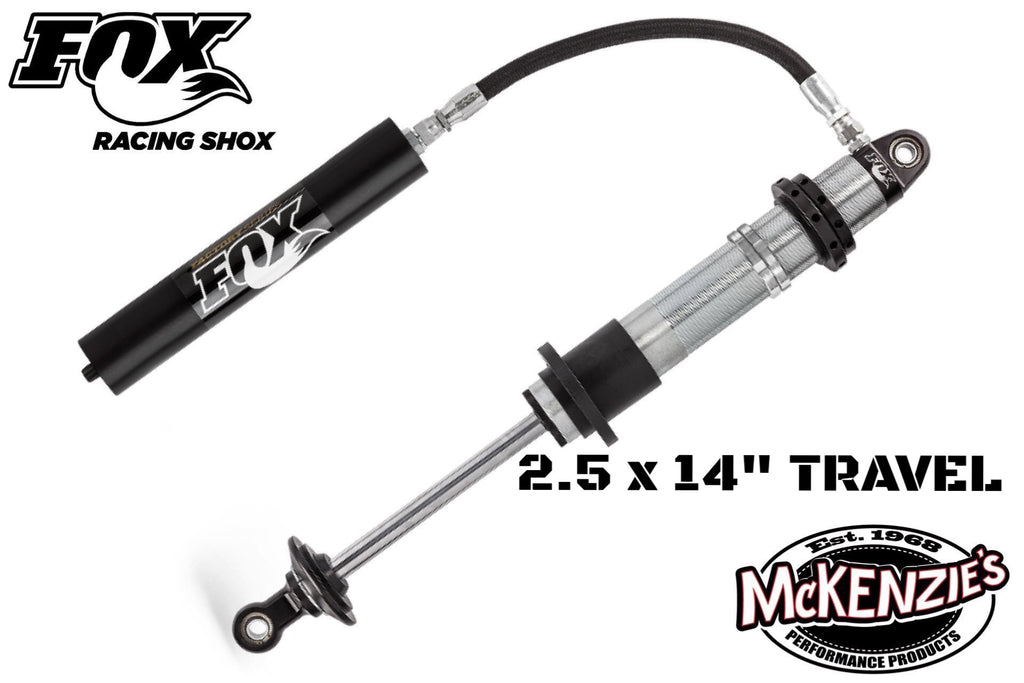

Fox 980-02-108 | 2.5 X 14" Travel Coil-Over Remote | Factory Series
FOX smooth body shocks are available in a broad range of sizes and that are all specifically valved for your application. FOX has the perfect shock for your project with multiple mounting options to choose from. Our smooth body shocks provide years of unparalleled performance at a competitive price.
Body
- Smooth-bore, clear coated, zinc plated, honed seamless alloy bodies
Components
- Black anodized 6061-T6 billet aluminum
Shaft
- 7/8" hard chrome plated stainless steel 17-4 H900
Piston
- Race-developed high-flow piston design
Valving
- Proprietary deburred valve shims
Seals
- Redundant sealing pack system main seal, wiper seal, scraper seal
- Optional high temperature Viton seals
Oil
- Specially formulated for ultimate performance at variable temperatures
Reservoir
- Remote
- Optional 90 degree fittings
- Custom hose lengths available
Mounting
- Lined, heat-treated, alloy steel spherical bearings
- 1/2" bolt x 1 1/4" wide
| Travel | Extended | Compressed | Valving | Shaft | Note | Part Number |
|---|---|---|---|---|---|---|
| 10" | 29.43" | 19.43" | 50/70 | 7/8" | 980-02-106 | |
| 12" | 33.43" | 21.43" | 50/70 | 7/8" | 980-02-107 | |
| 14" | 38.43" | 24.43" | 50/70 | 7/8" | 980-02-108 | |
| 16" | 42.43" | 26.43" | 50/70 | 7/8" | 980-02-109 |
EXPLODED VIEW
