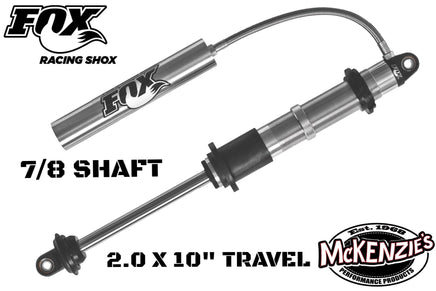

FOX 980-02-008 | 2.0 X 10" Travel Coil-Over Remote - 7/8 Shaft | Factory Series
From the finish line at the Indy 500 to the deserts of Dakar, FOX coil-over shocks have proven themselves as winners year after year.
FOX engineers work only with the best spring manufacturers to develop winning spring/shock combinations. Whether you are upgrading your daily driver or building an unlimited trophy truck, FOX has a coil-over shock to fit your needs.
Body
- Smooth-bore, clear coated, zinc plated, honed seamless alloy bodies
Components
- Black anodized 6061-T6 billet aluminum
Shaft
- 7/8" hard chrome plated stainless steel 17-4 H900
Piston
- Race-developed high-flow piston design
Valving
- Proprietary deburred valve shims
Seals
- Redundant sealing pack system main seal, wiper seal, scraper seal
- Optional high temperature Viton seals
Oil
- FOX formulated for ultimate performance at variable temperatures
Reservoir
- Remote
Mounting
- Lined, heat-treated, alloy steel spherical bearings 1/2" bolt x 1 1/4" wide
Travel |
Extended |
Compressed |
Valving |
Shaft |
Note |
Part Number |
|---|---|---|---|---|---|---|
5" |
16.42" |
11.42" |
40/60 |
5/8" |
980-02-040 |
|
6.5" |
19.35" |
12.85" |
40/60 |
5/8" |
980-02-006 |
|
8.5" |
23.35" |
14.85" |
40/60 |
5/8" |
980-02-003 |
|
10" |
26.65" |
16.65" |
40/60 |
5/8" |
980-02-005 |
|
10" |
26.1" |
16.1" |
50/70 |
7/8" |
980-02-008 |
|
12" |
31.1" |
19.1" |
50/70 |
7/8" |
980-02-010 |
|
14" |
35.1" |
21.1" |
50/70 |
7/8" |
980-02-012 |
|
16" |
40.1" |
24.1" |
50/70 |
7/8" |
980-02-059 |
|
18" |
44.1" |
26.1" |
50/70 |
7/8" |
980-02-060 |
EXPLODED VIEW
